Cop 34 DTH Bits , Cop 32 DTH Hammer Drilling For Blast Hole Drilling And Water Well Drilling Projects

1 pcs
MOQ
Negotiate
মূল্য
Cop 34 DTH Bits , Cop 32 DTH Hammer Drilling For Blast Hole Drilling And Water Well Drilling Projects
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
সাক্ষ্যদান: ISO9001
মডেল নম্বার: DTH Hammer
Model NO: COP 34, COP 32, DHD 3.5, Mission 30, BR 3
Use: Ore Mining
Application: Deep Hole Drilling
Machine Type: Drilling Tool
Processing Type: Forging
Model Type: Cop 34, Cop 32, DHD 3.5, Mission 30, Br 3
Name: puma dth hammers
Origin: China dth hammers and bits
Hammers: down hole hammer drill
China: China dth drilling rig
Drilling: drill king international
Item No: mission dth hammers
Types: perfuratriz dth hammers tools
Shanks: Bit shank identification
Sales: COP34 dth hammer sales
Bits: DTH hammer bits
লক্ষণীয় করা:

dth drilling tools

,

down hole tools

মৌলিক তথ্য
উৎপত্তি স্থল: Germany,China
পরিচিতিমুলক নাম: ROSCHEN
প্রদান
প্যাকেজিং বিবরণ: Wooden box
যোগানের ক্ষমতা: 1500 pcs
পণ্যের বর্ণনা

Cop 34, Cop 32 DTH Hammer

Cop 34 DTH Bits, Cop 32 DTH Hammer for blast hole drilling and water well drilling projects






DTH Drill Bits are produced from premium quality nickel-alloy steel for increased durability and wear characteristics. Specific heat treatment standards and special "stress relief" processes ensure consistent performance. DTH hammer bits are designed for maximum performance and hole cleaning ability and high penetration rate.



"Down-the-hole" (DTH) drill bits are used with "Down-the-hole" hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill bits are designed with a splined drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes.



All ROSCHEN’s DTH drill bits are also CAD designed, CNC manufactured for perfect bits body, and multiple heat-treated to enhance hardness, surface-compressed for fatigue resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions.



Product Description:

1. Specific heat treatment standards

2. Premium hardened steel alloy

3. High-grade cemented tungsten carbide buttons.

4. Certification: GB/T 19001-2008/ISO 9001: 2008






Application:

1. The down-the-hole drilling tool is used to drill large-diameter holes in rocks, usually in the initial stage prior to blasting, but it is also used in non-blasting application.


2. DTH drilling are used mostly in mining quarries, but can be used in a variety of other construction application.


3. The DTH drilling method is growing in popularity, with the increase in all application segments, including blast-hole, water well, foundation, oil & gas, cooling systems and drilling for heat exchange pumps.


4. Applications were later found for the underground DTH method, where the direction of drilling is generally upwards instead of downwards.




Product Name: DTH drill bits
Description: DTH drill bits are used for blast hole drilling and water well drilling projects.
Working with DTH hammer, mainly applied in Mining,
Marble quarry or well drilling and other construction projects.
Material: High quality carbide + High quality carbon steel
MOQ: 5pcs
Compatibility Series: COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc




Technical Specification
Specification: Diameter: (mm) Weight: (kg)
Low air pressure DTH bits CIR type 68 ~ 200 2.6 ~ 48
Middle air pressure BR & COP type 76 ~ 110 3.8 ~ 15
3 inch high Air pressure DTH bits 85 / 90 / 95 / 100 / 105 4.2 ~ 5.5
4 inch high Air pressure DTH bits 105 / 110 / 115 / 120 / 127 9 ~ 12
5 inch high Air pressure DTH bits 133 / 140 / 146 / 152 / 165 15 ~ 18.5
6 inch high Air pressure DTH bits 152 / 165 / 178 / 190 / 203 26 ~ 36
8 inch high Air pressure DTH bits 195 / 203 / 216 / 254 / 305 33 ~ 95



Specification: Weight (kg) External Diameter (mm) Connection thread Hole rang (mm) Impact rate Recommended rotation speed
3 inch DTH hammer 24.5 81 API 2 3/8" Reg 90~110 28Hz (at 17 bar) 28 r/min
COP34/QL30 etc
4 inch DTH hammer 39.2 99 API 2 3/8" Reg 110~150 27Hz (at 17 bar) 25~40 r/min
COP44/DHD340 etc
5 inch DTH hammer 71.5 125 API 2 3/8" or API 3 1/2" Reg 135~165 25Hz (at 17 bar) 20~30 r/min
COP54/Mission50 etc
6 inch DTH hammer 98 142 API 3 1/2" Reg 152~216 23Hz (at 17 bar) 15~25 r/min
COP64/QL60 etc
8 inch DTH hammer 188 180 API 4 1/2" Reg 203~305 20Hz (at 17 bar) 15~25 r/min
COP84/SD8 etc




ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min

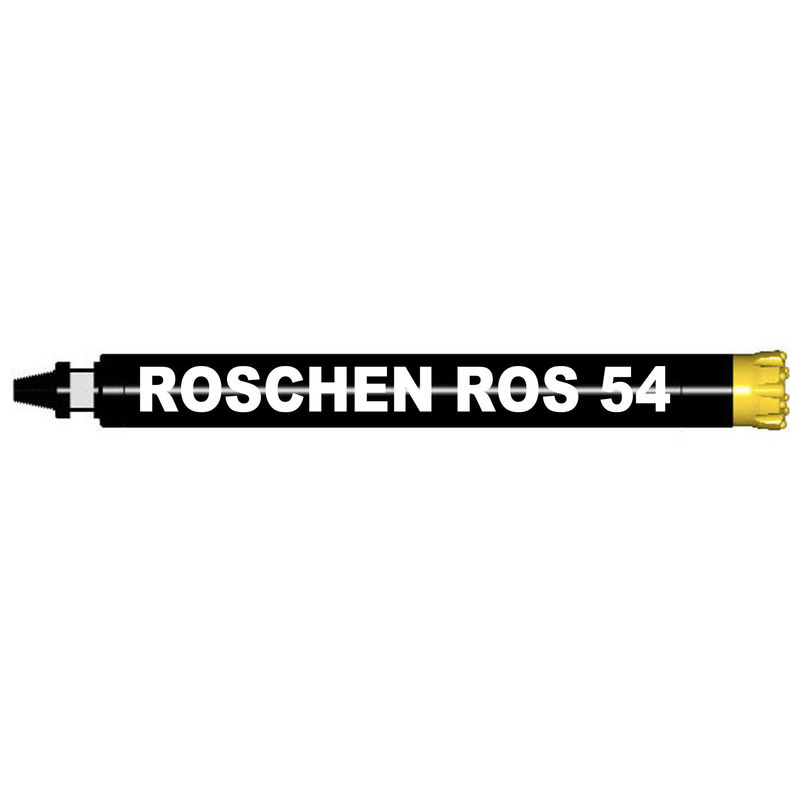

5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!





FAQ



Terms & Conditions of Ordering:




Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.



Package:

Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.



Production time:

Generally need 15-25 days



Transportation:

By air, By Express or By sea according to your requests.





1. Methods of Payment:

T/T (Telegraphic Transfer) or Western Union or L/C at sight



2. Handling time for an order

Based on order quantity, normally it takes 20 days for production.

in 3 working days after receiving the advance payment



3. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.



4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.



5. After Services:

a. Our sales team will response for your question within 24 hours (Holidays Excluded)

b. Technical Support will be available in any time



6. Quality & Service:

A. There will be strict inspection and testing for every order before shipping out.

B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009

C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
