SD 8A SD 8 Down The Hole Hammer , Stone Quarrying down hole hammer drilling

1pcs
MOQ
Negotiate
মূল্য
SD 8A SD 8 Down The Hole Hammer , Stone Quarrying down hole hammer drilling
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Model: Donw The Hole Hammer
Name: Secoroc COP Hammer
Drills: Down The Hole Drilling, DTH Drilling
Machine: Hydraulic Crawler Drill Rig
Drillings: Water Well Drilling
Tools: Down The Hole Drilling Tools
Equipment: Surface Ground Core Drill Rig
লক্ষণীয় করা:

dth drilling tools

,

down hole tools

মৌলিক তথ্য
উৎপত্তি স্থল: GERMANY CHINA
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO,CE
মডেল নম্বার: ROS64
প্রদান
প্যাকেজিং বিবরণ: Wooden Box
যোগানের ক্ষমতা: 6000pcs
পণ্যের বর্ণনা

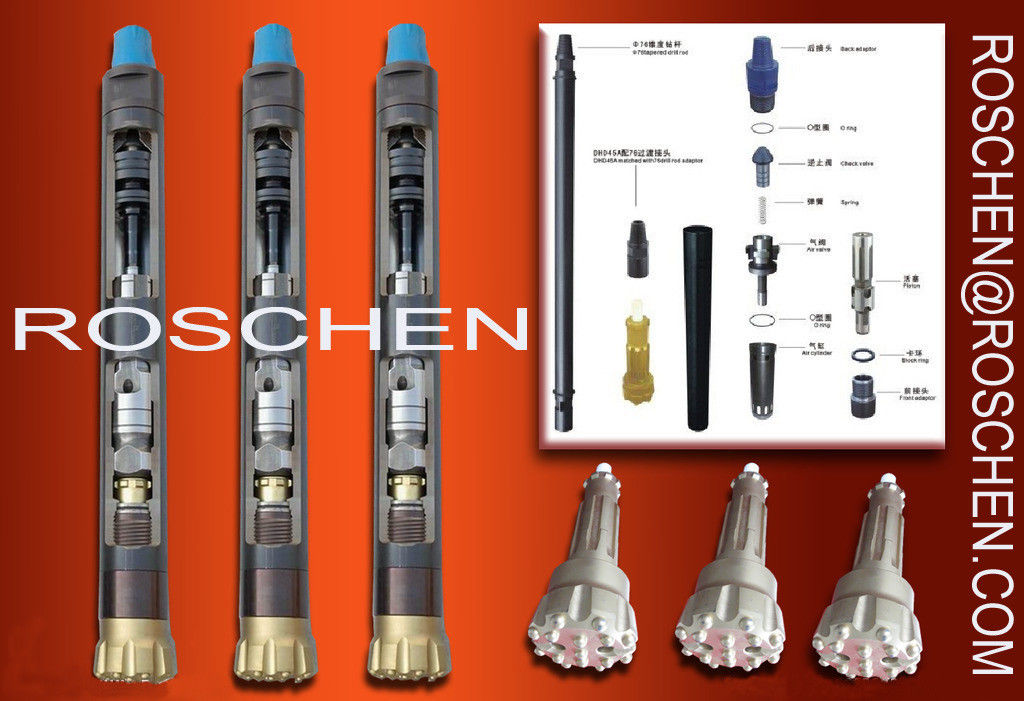

SD8A DTH Hammer

SD 8 Down The Hole Hammer



SD 8A DTH Hammer SD 8 Down The Hole Hammer for Stone Quarrying Drilling



Down The Hole Hammer, i.e. Pneumatic impactor, also known as pneumatic impactor, pneumatic dive hammer. To the compressed air as the power medium, the use of compressed air energy to produce continuous impact load hole at the end of power equipment.



Compressed air at the same time can also doubles as a wash hole medium. Pneumatic impactor has high wind pressure and low wind pressure, valve type and no valve type of points. Usually the pneumatic impactor directly connected with the carbide rod tooth drill to impact the way rock, low-speed rotation is not coring the full drilling. Mainly used in hydrological wells drilling, non core geological drilling, geological disaster prevention and control projects and mine drilling and other fields. Suitable for use in gravel and hard rock formations, specially configured drill bits can also be used in soft soil. Mechanical drilling speed is generally much higher than the hydraulic impactor drilling, but need to be equipped with a larger capacity of the air compressor, fuel consumption, noise, dust pollution. Drilling depth by the groundwater level, the greater the impact of water.




Basic Info
Model NO SD8
Mining Object Mining
Origin China
Type Drilling Machine
Trademark ROSCHEN
HS Code 84123100





Description:

It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.




Main Advantages:

1. Out of the trouble of foot valve fracture and expansion and contraction.

2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.

3. Simple structure, reliable parts, long life, easy and cheap maintenance.

4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.



Length (exclude bit) Weight (exclude bit) External Diameter Bit Shank Hole Range Connection Thread
1330 mm 174.00 kg Φ180 mm SD8 Φ195mm ~ Φ254mm API 4 1/2'' Reg
Working Pressure Impact rate at 0.5 MPa Recommended Rotary Speed Air Consumption
1.0 MPa 1.8 MPa 2.4 MPa
1.0 ~ 2.5 MPa 22 Hz 15 ~ 25 rpm 12 m³/min 22 m³/min 28 m³/min






DTH hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Metzke, Remet thread is available!
