D55S DTH Hammer (Cop54 DHD350R)
COP 54 DHD 350R Down The Hole Hammer
COP 54 DHD 350R Down The Hole Hammer Used for Geological Mineral Drilling
| Basic Info |
| Model NO |
Cop54 DHD350R |
| Mining Object |
Mining |
| Origin |
Germany, China |
| Type |
Drilling Machine |
| Trademark |
Roschen |
| HS Code |
84123100 |
| Mining Object |
Mining, Ore Machinery, Stone Quarry |
| Usage |
Use Together with DTH Button Bits |
| Aplication |
DTH Drilling. Coal Mining, Quarry |
| Drill Diameter |
65-305mm |
| Transport Package |
Ply wood Box |
Product Description:
It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.
Features:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
Technical Parameteres of DHD 350R Down The Hole Hammers:
| Length (exclude bit) |
Weight (exclude bit) |
External Diameter |
Bit Shank |
Hole Range |
Connection Thread |
| 1110 mm |
66.00 kg |
Φ116 mm |
Cop54 DHD350R |
Φ127mm ~ Φ145mm |
API 2 3/8'' Reg |
| API 3 1/2'' Reg |
| Working Pressure |
Impact rate at 0.5 MPa |
Recommended Rotary Speed |
Air Consumption |
| 1.0 MPa |
1.8 MPa |
2.4 MPa |
| 1.0 ~ 2.5 MPa |
28 Hz |
20 ~ 35 rpm |
7 m³/min |
13.5 m³/min |
18 m³/min |

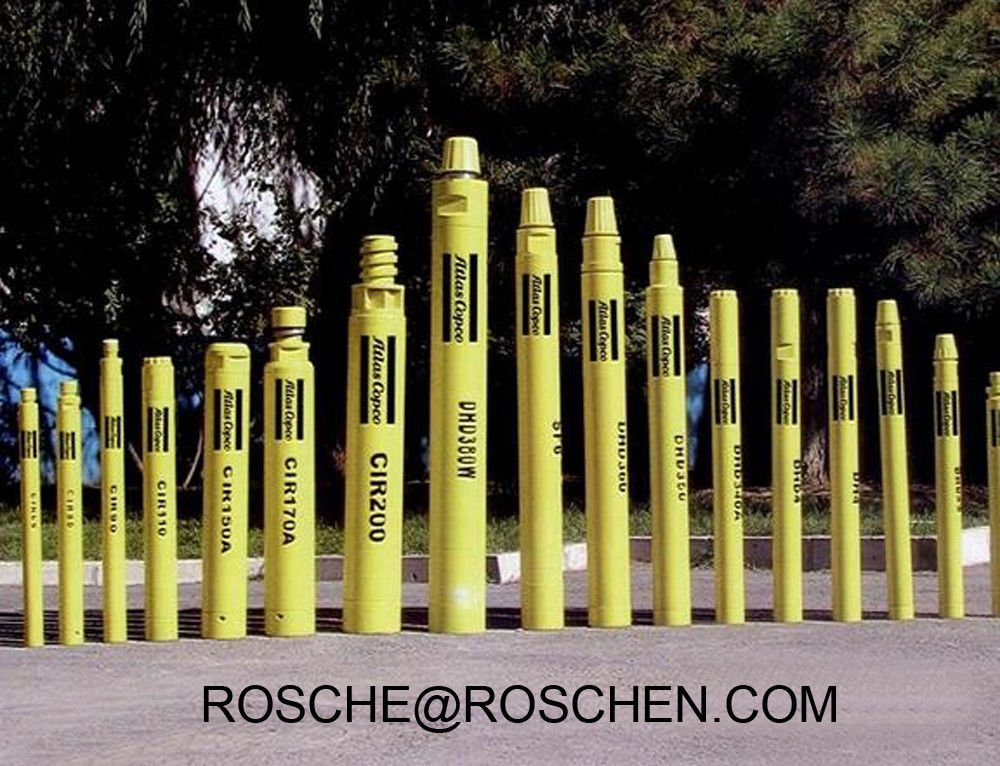

| DTH Hammers Specifications |
| Hammer Size |
Bit Shank |
ROSCHEN Code |
Connection Thread |
Suitable bit |
Working pressure |
Air consumption |
| 2" |
BR2 |
ROS 11 ROS 22 |
RD50 box |
￠70-￠90mm |
0.7-1.75Mpa |
0.7Mpa |
4.5m3/min |
| 1.0Mpa |
4m3/min |
| 1.4Mpa |
5m3/min |
| 3" |
DHD3.5 |
ROS 32 |
API 2 3/8" Reg |
￠90-￠110mm |
1.0-1.5Mpa |
1.0Mpa |
4.5m3/min |
| COP32/COP34 |
| M30 |
1.5Mpa |
9m3/min |
| 4" |
DHD340 |
ROS 34 |
API 2 3/8" Reg |
￠110-￠135mm |
1.0-2.5Mpa |
1.0Mpa |
6m3/min |
| COP44 |
| QL40 |
| SD4 |
1.8Mpa |
10m3/min |
| M40 |
2.4Mpa |
15m3/min |
| 5" |
DHD350 |
ROS 52 ROS 54 |
API 2 3/8"Reg/API 3 1/2" Reg |
￠135-￠155mm |
1.0-2.5Mpa |
1.0Mpa |
9m3/min |
| COP54 |
| QL50 |
| SD5 |
1.8Mpa |
15m3/min |
| M50 |
2.4Mpa |
23m3/min |
| 6" |
DHD360 |
ROS 62 ROS 64 |
API 3 1/2" Reg |
￠155-￠190mm |
1.0-2.5Mpa |
1.0Mpa |
10m3/min |
| COP64 |
| QL60 |
| SD6 |
1.8Mpa |
20m3/min |
| M60 |
2.4Mpa |
28.5m3/min |
| 8" |
DHD380 |
ROS 82 ROS 84 |
API 4 1/2" Reg |
￠195-￠254mm |
1.0-2.5Mpa |
1.0Mpa |
15m3/min |
| COP84 |
| QL80 |
1.8Mpa |
26m3/min |
| SD8 |
2.4Mpa |
34m3/min |
| 10" |
SD10 |
ROS 100 |
API 6 5/8" Reg |
￠254-￠311mm |
1.0-2.5Mpa |
1.0Mpa |
22m3/min |
| Numa100 |
1.8Mpa |
40m3/min |
| ROS 100 |
2.4Mpa |
55m3/min |
| 12" |
DHD1120 |
ROS 120 |
API 6 5/8" Reg |
￠305-￠445mm |
1.0-2.5Mpa |
1.0Mpa |
30m3/min |
| SD12 |
1.8Mpa |
56m3/min |
| Numa120 |
2.4Mpa |
78m3/min |
| Notes: Metzke, Remet thread is available! |
