T45 76mm Designed Top Hammer Drilling For Maximum Bit Life In Hard And Abrasive Rock

1 pcs
MOQ
T45 76mm Designed Top Hammer Drilling For Maximum Bit Life In Hard And Abrasive Rock
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
লক্ষণীয় করা:

dth drilling tools

,

concrete core drill bit

মৌলিক তথ্য
উৎপত্তি স্থল: Germany
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO
মডেল নম্বার: T38 76
প্রদান
প্যাকেজিং বিবরণ: Carton box
যোগানের ক্ষমতা: 10000pcs
পণ্যের বর্ণনা

T45 76mm Designed for maximum bit life in hard and abrasive rock Drilling


T45 76mm Designed for maximum bit life in hard and abrasive rock Drilling

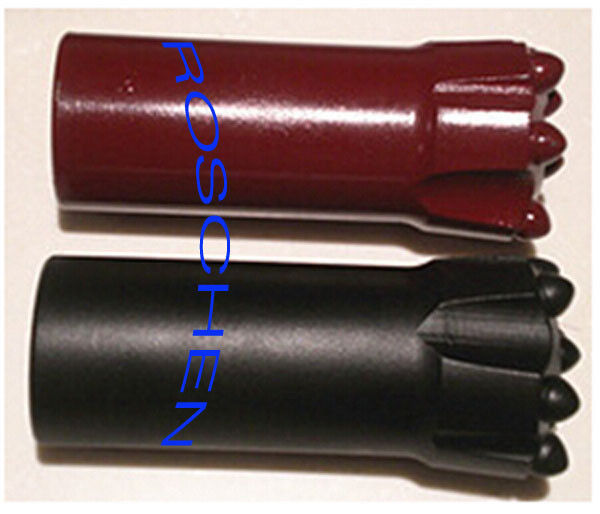

Roschen can supply variety of thread rock drilling tools, T45 retract ballistic button bits, button bit T45, drill button bit, retrac button bits, thread button drill bit etc.


Button bits are made with best quality alloy steel bar and tungsten carbide buttons, through advanced heat treatment technology like Atlas Copco, Secoroc & Boart Longyear.

Button bits:
1. Thread button bits (32mm, 41mm, 45mm, 48mm, 51mm, 64mm, 70mm, 76mm, 89mm, 102mm, 127mm and differeent matched thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, T60, ST58, ST68 etc).

2. We can offer you all face design, flat face, drop-center face, normal body and retrac body.


Material:
Alloy steel bar 45CrNiMoV and tungsten carbide tips YK05


Body type:
Normal body or retrac body


Thread type:
R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60


Diameter:
32mm-127mm


Button bit shape:
spherical and ballistic


Face shape:
Flat shape and drop-center shape


Sizes:



Diameter Number x Button Diameter Flushing Hole Weight Approx
mm inch Front Gauge Angle Front Slide Kg
Spherical buttons / Parabolic buttons / Ballistic buttons
64 2 1/2 3x11 6x12 35 3 / 1.8
64 2 1/2 4x10 8x12 40 2 / 1.6
64 2 1/2 3x10, 1x10 6x11 35 3 / 1.7
70 2 3/4 4x11 8x11 40 2 / 1.9
70 2 3/4 4x10, 1x10 8x11 30 4 / 1.9
70 2 3/4 3x10, 1x10 6x12 35 3 / 1.8
76 3 4x11 8x11 40 2 / 2.4
76 3 5x11 8x13 35 2 1 2.5
76 3 3x11,1x11 6x12 35 3 1 2.6
76 3 4x11,1x11 8x12 35 4 / 2.6
76 3 4x11,1x11 8x12 40 4 / 2.6
89 3 1/2 4 x 13 8 x 13 40 2 / 3.3
89 3 1/2 5 x 13 8 x 13 35 2 / 3.3
89 3 1/2 6 x 11 8 x 12 35 2 / 3.3
89 3 1/2 3x11, 2x11 6 x 13 35 3 / 3.3
89 3 1/2 4x11, 1x11 8 x 13 35 4 / 3.3
89 3 1/2 4x13, 1x13 8 x 13 35 4 / 3.3
