| Place of Origin | China |
| পরিচিতিমুলক নাম | ROSCHEN |
| সাক্ষ্যদান | ISO,CE |
| Model Number | Taper Drill Rod 7°, 11°, 12°,etc |
11 Degree Tapered Rock Drill Rods , Tungsten Carbide Rod In Underground Mining Industry
11° Tapered Rock Drill Rods , Tungsten Carbide Rod Used In Underground Mining Industry
Tapered drill rod, Drill rod for rock drilling machine,Integral drill rod B19 B22, 22mm diameter drill rod/drill pipe, Tapered drill rod, integrail drill rod, integral drill pipe, Hex mining rock drill steel rod, Light weight rock drilling rod, rock drilling pipe 2m, 4m coal mining rock drilling rod , rock drill tapered steel rods.
This drill rod can be connected with button bits,taper bits,and cross-type bits.
Application:Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
Rock Drill Steel,Tapered Rock Drill Rods
1) Material: 40SiMnCrNiMo
2) Shank spec.: Hex19*108mm, Hex22*108mm, Hex25*108mm, Hex25*159mm
3) Taper connection: 7, 11, 12 degree
4) Length: 0.5m~6.0m

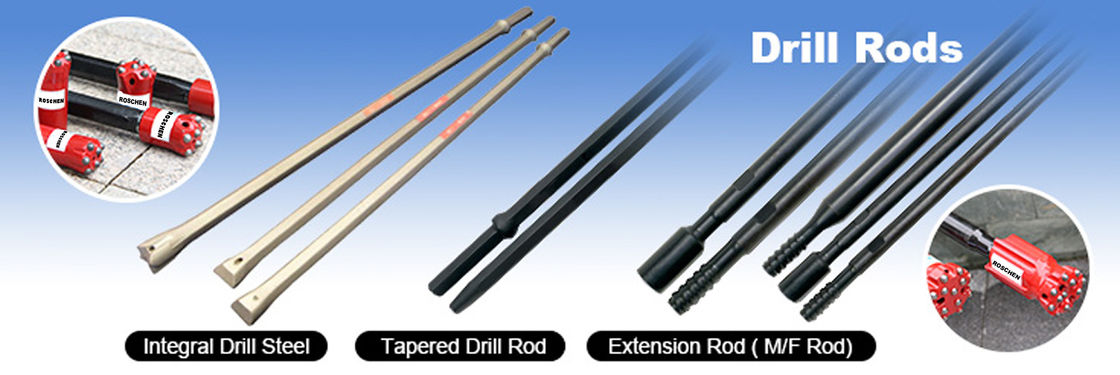

| Types of drill rods | Specifications | Length(mm) | Shank | Weight (kg) |
| Tapered drill rods | Taper Angle: 4, 6, 7, 11, 12 degree | 400mm to 8000mm | Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm | 1.7 - 24.9 |
| Integral drill steel | Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm | 400mm to 4800mm | 3 – 15.4 | |
| Plug hole rods | Chisel bit diameter: 17mm, 20mm, 22mm | 150mm to 710mm | 0.6 - 2.9 |
