High intension Hot Rolled Hexagonal Steel Bar Hollow Drill Rod hex 22mm 28mm

500kgs
MOQ
$100
মূল্য
High intension Hot Rolled Hexagonal Steel Bar Hollow Drill Rod hex 22mm 28mm
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
লক্ষণীয় করা:

diamond core drilling bits

,

concrete core drill bit

মৌলিক তথ্য
উৎপত্তি স্থল: GERMANY
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO9001
মডেল নম্বার: hex. 22mm, hex. 25mm, hex. 28mm, hex. 32mm, hex. 38mm
প্রদান
প্যাকেজিং বিবরণ: steel pallet
পণ্যের বর্ণনা



High intension Hot Rolled Hexagonal Steel Bar Hollow Drill Rod hex 22mm 28mm


High intension and toughness of hex 28mm used for Perforated Hexagonal Hollow Steel Tubes Pipe & Hexagonal Drilling rod

High intension and toughness hex 22mm hex 28mm used for Perforated Hexagonal Hollow Steel Tubes Pipes & Hexagonal Drill Rod


Products details:



A type of steel specially used in drill rod in quarry drilling, high intension and toughness.



Material:


95CrMo (same as SANDBAR 20 or C253)



Specifications:



Hexagon and round

Size: hex. 22mm, hex. 25mm, hex. 28mm, hex. 32mm, hex. 38mm,

Round: Dia.32mm, 35mm, 38mm, 51mm

Length: any length according to your require.

Package: Wrapped with plastic knitting and then into bundles.


The main size and specifications as below:

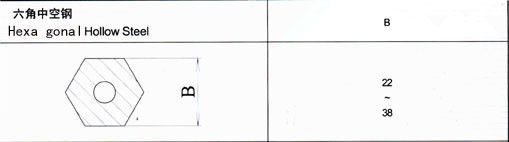

Hot Rolled Hexagonal Hollow Drill Steel Bar

Steel Grade: 95CrMo as per Chinese Standard with following chemistry:

C: 0.92-1.03PCT;     Si: 0.25-0.45PCT;

Mn: 0.25-0.45PCT;    Cr: 0.80-1.20PCT;

Ni: 0.25PCT MAX.;    Mo: 0.20-0.30PCT;

S,P: 0.025PCT MAX;  Cu: 0.30PCT MAX.



Features:


Physical Specification



σb                    1320Mpa

δs                     9%

Ψ                      25.5%

σ-1                    350Mpa

Hardness:  36-48HRC.
