2400mm Blast hole drilling tapered rod Top Hammer Drilling for Granite

10 pcs
MOQ
2400mm Blast hole drilling tapered rod Top Hammer Drilling for Granite
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
লক্ষণীয় করা:

dth drilling tools

,

diamond core drilling bits

মৌলিক তথ্য
উৎপত্তি স্থল: GERMANY
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO9001
মডেল নম্বার: 600mm, 800mm, 1000mm, 1200mm, 2400mm
প্রদান
প্যাকেজিং বিবরণ: pallet
পণ্যের বর্ণনা

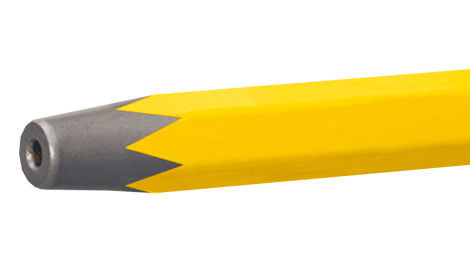

2400mm Blast hole drilling tapered rod Top Hammer Drilling for Granite





Blast hole drilling tapered rod 2400mm length drilling for granite and marble quarry, construction, railway, tunnel

Blast hole drilling tapered rod 2400mm length drilling for granite and marble quarry, construction, gold mine, railway, tunnel
T38, T60 Extension Drill Rods & Drifting Drill Rods drilling for granite and marble quarry, gold mine, railway, tunnel



Specifications:


High quality taper rod:

1. Shank: Hex 19, Hex 22, Hex 25, Hex 22 * 108mm
2. Taper: 4 degree, 6 degree, 7 degree, 11 degree, 12 degree
3. Length: 600mm-8000mm, such as 600mm, 800mm, 1000mm, 1200mm, 2400mm, 2800mm, 3000mm, 3200mm, 4000mm, 4500mm, 5000mm, 6000mm, 7000mm, 8000mm, 10000mm, etc


Features:



Product Name:

 tapered rod

Types

Tapered drill rods, Integral drill rods, Plug hole rods

Application::

Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling

Material:

High quality carbide and high quality steel

MOQ:

No requirement for testing and trial order

We can produce as your request of carbide size, different length of drill rods.

Types of drill rods

Specifications

Length            (mm)

Shank

Weight (kg)

Tapered drill rods

Taper Angle: 4, 6, 7, 11, 12 degree

400mm to 8000mm

Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm

1.7 - 24.9

Integral drill steel

Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm

400mm to 4800mm

3 – 15.4

Plug hole rods

Chisel bit diameter: 17mm, 20mm, 22mm

150mm to 710mm

0.6 - 2.9
