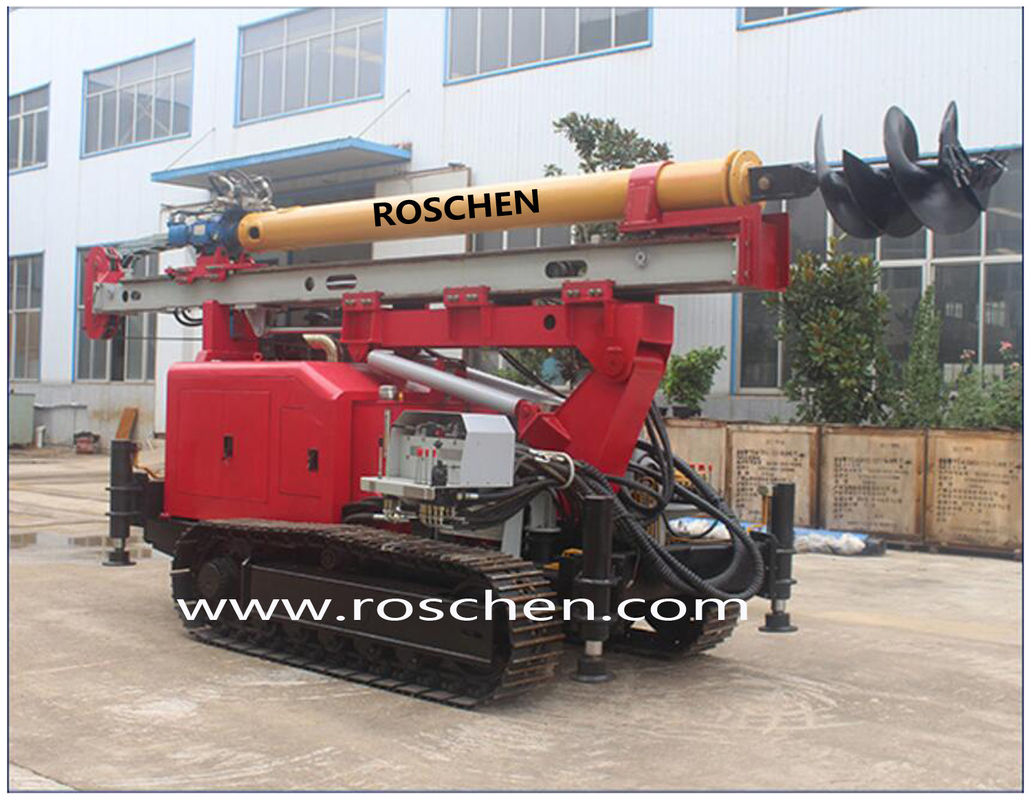

Multifunction Hydraulic Crawler Drilling Rig Machine for Jet Grouting RS-160

1 sets
MOQ
Negotiate
মূল্য
Multifunction Hydraulic Crawler Drilling Rig Machine for Jet Grouting RS-160
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Name: Multifunction Hydraulic Crawler Drilling Rigs
Drilling: Jet Grouting, Down Hole Hammer
Machine: Drilling Rig
Drills: Top Hammer Drilling
Model: Crawler Multifunctional Drilling Rig
Hammer: DTH Hammer
Type: Percussion Drilling
লক্ষণীয় করা:

rock drilling equipment

,

geothermal drilling rigs

মৌলিক তথ্য
উৎপত্তি স্থল: Germany,China
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO
মডেল নম্বার: RS-160
প্রদান
প্যাকেজিং বিবরণ: Bundles
যোগানের ক্ষমতা: 1000 sets
পণ্যের বর্ণনা

RS-160 Multifunction Hydraulic Crawler Drilling Rigs for Jet Grouting



RS-160 Multifunction Hydraulic Crawler Drilling Rig




Versatile, flexible and high performance machine for micro piles and Kelly Bar applications.




Quick Details
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel Engine, Cummins Diesel Engine, Deutz Diesel Engine
Brand Name: ROSCHEN
Model Number: RS-160
Usage: Micro piles, segmented flight auger, jet grouting, bored pile
Voltage: 220V/380V
Power(W): 92Kw
Dimension(L*W*H): 6500*2100*3000(mm)
Weight: 9600Kg
Certification: ISO CE
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Piling diameter(screw): 400---1000mm
Piling depth(screw): 14m
Bore diameter (DTH hammer): 115---400mm
Bore depth: 400m
Pull-down force: 2400kg
Extraction force: 9500kg
Double clamps minimum diameter: 100mm
Winch line pull (effective): 2500kg
Drum diameter: 250mm
Rope diameter: 12mm



Features:

1. Very high extraction force.
2. Large diameter hydraulic joint breaker;
3. Compact equipment easy to transport on trucks.
4. Capacity to drill with telescopic Kelly.
5. Mast extension suitable to place pile cages with auxiliary winch.
6. Suitable to low clearance or tight access jobsites.
7. Capable to handle large diammeter down the hole hammer from 3 inch to 20 inch hole drilling.




Applications:

Micro piles, segmented flight auger, jet grouting, bored pile and down the hole hammer.



Technical parameters:

Model RS-160
Piling diameter(screw) 400---1000mm
Piling depth(screw) 14m
Bore diameter (DTH hammer) 115---400mm
Bore depth 400m
Installed power 92KW
Pull-down force 2400kg
Extraction force 9500kg
Double clamps minimum diameter 100mm
Winch line pull (effective) 2500kg
Drum diameter 250mm
Rope diameter 12mm
Crawlers overall length 2800mm
Track shoe width 380mm
Overall width 2100mm
Dimension(L*W*H) 6500*2100*3000mm
Total weight 9600kg
