RE004 Reverse Circulation Bit
RE004 Reverse Circulation Bit for Epiroc RE004 RC hammer
Keywords: Re004 Reverse Circulation Bit, Reverse Drill Bits Napa, Reverse Drill Bit, Reverse Order of Bits, Reverse Twist Drill Bits, How to Reverse Drill, Python Reverse Bit Order, Drill Bit Reverse Thread, Reverse Circulation Drilling Process, China Re004 Bit, Re004 Reverse Circulation Bits, Atlas Copco RC45 Reverse Circulation Button Bits, Reverse Circulation Bit, Reverse Circulation Bit on Sales, Atlas Copco Secoroc Cop, Reverse Circulation RC Bits, RC Bit Reverse Circulation Drill Bit, Reverse Circulation (RC) Bits, Reverse Circulation Bits Sale, China Reverse Circulation Bit on Sales
Reverse Circulation Hammer bits
Drilling: Reverse Circulation Drilling
Name: Reverse Circulation Hammer Bits
Products: Atlas copco Reverse Circulation Hammer Bits
Sizes: Atlas Copco RC50 Reverse Circulation Hammer
Applications: Coal Mining, Ore Mining, Exploration Core Drilling
Thread Connection: Remet and Metzke
Bits: Air Hammer Bits
Hammer: Reverse Hammer Candlestick
Item No: Inverted Hammer Candlestick Pattern
Reverse Circulation (RC) Drilling
Reverse circulation or RC drilling is a fast and inexpensive method of drilling, particularly compared to diamond drilling. A hundred metres or more of drilling is possible a day. RC is a commonly used drilling method in the mineral exploration industry.
The speed of RC drilling means the drill programme needs to be planned well ahead of drill schedule. The supervising geologist should also have sufficient experience to change the programme at short notice, if necessary.
RC drilling works by blasting air down an outer drill pipe using a high performance air compressor at the surface. An air-driven hammer at the end of the drill stem pounds a tungsten-iron drill bit against the rock, pulverising and breaking fragments away. The drill bit, stem and pipe continuously rotate as the rock is being hammered. Jets of air are forced up the drill hole on the side of the drill bit.
Rock dust and fragments known as cuttings or chips are carried by the strong airflow up through the middle of the bit into an inner drill pipe. The air current is so strong that rock material can be brought to the surface from hundreds of metres down. When it reaches the surface, the dust and chips are fed into a cyclone splitter that slows the air flow down and divides the sample into small and large samples.
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
Product specifications: RE004 RC Bits
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
| 114 |
4 1/2 |
8x14 |
6x14 |
35 |
2 |
112 |
11.5 |
RE004-114 |
| 118 |
4 5/8 |
8x14 |
6x14 |
35 |
2 |
116 |
11.7 |
RE004-118 |
| 121 |
4 3/4 |
8x14 |
6x14 |
35 |
2 |
119 |
12 |
RE004-121 |
| 127 |
5 |
8x14 |
8x14 |
35 |
2 |
125 |
12.4 |
RE004-127 |
ROSCHEN RC hammer bit technical data:
| ROSCHEN Reverse Circulation Bits Specifications |
| RE531 RC bits |
| ROSCHEN Code: ROS RC 30 |
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
| 86 |
3 3/8 |
6x12 |
4x12 |
35 |
2 |
84 |
4.2 |
RE531-86 |
| 89 |
3 1/2 |
8x12 |
8x12 |
35 |
2 |
87 |
4.3 |
RE531-89 |
| 95 |
3 3/4 |
8x12 |
8x12 |
35 |
2 |
93 |
4.6 |
RE531-95 |
| 102 |
4 |
8x12 |
8x12 |
35 |
2 |
100 |
4.9 |
RE531-102 |
| RE004 RC bits |
| ROSCHEN Code: ROS RC 40 |
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
| 114 |
4 1/2 |
8x14 |
6x14 |
35 |
2 |
112 |
11.5 |
RE004-114 |
| 118 |
4 5/8 |
8x14 |
6x14 |
35 |
2 |
116 |
11.7 |
RE004-118 |
| 121 |
4 3/4 |
8x14 |
6x14 |
35 |
2 |
119 |
12 |
RE004-121 |
| 127 |
5 |
8x14 |
8x14 |
35 |
2 |
125 |
12.4 |
RE004-127 |
| RE542 |
| ROSCHEN Code: ROS RC 50 |
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
|
|
|
|
|
| 121 |
4 3/4 |
8x14 |
6x14 |
35 |
2 |
119 |
10.6 |
RE542-121 |
| 124 |
4 7/8 |
8x14 |
8x13 |
35 |
2 |
122 |
10.8 |
RE542-124 |
| 127 |
5 |
8x14 |
8x14 |
35 |
2 |
125 |
11 |
RE542-127 |
| 130 |
5 1/8 |
8x14 |
10x14 |
35 |
2 |
128 |
11.3 |
RE542-130 |
| RE543 |
| ROSCHEN Code: ROS RC 50 |
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
| 124 |
4 7/8 |
8x14 |
8X13 |
35 |
2 |
122 |
10.8 |
RE543-124 |
| 127 |
5 |
8x14 |
8X14 |
35 |
2 |
125 |
11 |
RE543-127 |
| 130 |
5 1/8 |
8x14 |
10X14 |
35 |
2 |
128 |
11.3 |
RE543-130 |
| 133 |
5 1/4 |
8x16 |
10X14 |
35 |
2 |
131 |
11.8 |
RE543-133 |
| RE545 |
| ROSCHEN Code: ROS RC 50 |
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
| 124 |
4 7/8 |
8x14 |
8X13 |
35 |
2 |
122 |
13.3 |
RE545-124 |
| 127 |
5 |
8x14 |
8X14 |
35 |
2 |
125 |
13.5 |
RE545-127 |
| 133 |
5 1/4 |
8x16 |
10X14 |
35 |
2 |
131 |
13.8 |
RE545-133 |
| 136 |
5 3/8 |
8x16 |
6x16+3x14 |
35 |
2 |
134 |
14.2 |
RE545-136 |
| PR40 RC bit |
| ROSCHEN Code: ROS RC 50 |
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
| 124 |
4 7/8 |
8x14 |
8X13 |
35 |
2 |
122 |
14.3 |
PR40-124 |
| 127 |
5 |
8x14 |
8X14 |
35 |
2 |
125 |
14.7 |
PR40-127 |
| 133 |
5 1/4 |
8x16 |
10X14 |
35 |
2 |
131 |
15.2 |
PR40-133 |
| 138 |
5 4/9 |
8x16 |
6x16+3x14 |
35 |
2 |
136 |
15.8 |
PR40-138 |
| PR52 RC bit |
| ROSCHEN Code: ROS RC 55 |
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
| 133 |
5 1/4 |
8x16 |
10x14 |
35 |
2 |
131 |
11.2 |
PR52-133 |
| 136 |
5 3/8 |
8x16 |
6x16+3x14 |
35 |
2 |
134 |
11.5 |
PR52-136 |
| 140 |
5 1/2 |
8x16 |
6x16+3x14 |
35 |
2 |
138 |
11.9 |
PR52-140 |
| 143 |
5 5/8 |
8x16 |
6x16+3x14 |
35 |
2 |
141 |
12.3 |
PR52-143 |
| RE547 RC bit |
| ROSCHEN Code: ROS RC 55 |
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
| 136 |
5 3/8 |
8x16 |
6x16+3x14 |
35 |
2 |
134 |
15.1 |
RE547-136 |
| 140 |
5 1/2 |
8x16 |
6x16+3x14 |
35 |
2 |
138 |
15.5 |
RE547-140 |
| 143 |
5 5/8 |
8x16 |
6x16+3x14 |
35 |
2 |
141 |
15.8 |
RE547-143 |
| 146 |
5 3/4 |
8x16 |
6x16+3x14 |
35 |
2 |
144 |
16.3 |
RE547-146 |
| PR54 |
| ROSCHEN Code: ROS RC 55 |
| Diameter |
No x Button diameter mm |
Button angle |
Flusing holes |
Shroud Dia mm |
Weight (kgs) |
Part No |
| mm |
inch |
Gauge Buttons |
Front Buttons |
| 136 |
5 3/8 |
8x16 |
6x16+3x14 |
35 |
2 |
134 |
18.2 |
PR54-136 |
| 140 |
5 1/2 |
8x16 |
6x16+3x14 |
35 |
2 |
138 |
18.5 |
PR54-140 |
| 143 |
5 5/8 |
8x16 |
6x16+3x14 |
35 |
2 |
141 |
18.8 |
PR54-143 |
| 146 |
5 3/4 |
8x16 |
6x16+3x14 |
35 |
2 |
144 |
19.2 |
PR54-146 |
| Notes: |
| Metzke, Remet thread is available! |
| Any special size of Reverse Circulation bits will be available by requests. |
Shank can be available:
1). 4'' RC Bits:Diameter (104mm-127mm); Shank type: RE004/RE004R;RE542
2). 5'' RC Bits:Diameter(113mm-146mm) ; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
3). 6'' RC Bits: Diameter(152-190mm); Shank type: RC62/RC62R;
4). 8'' RC Bits: Diameter(190-250mm); Shank type: RC82/RC82R;
5). 10'' RC Bits: Diameter(250-370mm); Shank type: RC100/RC100R.
Other size can be upon to customer's requirements
We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

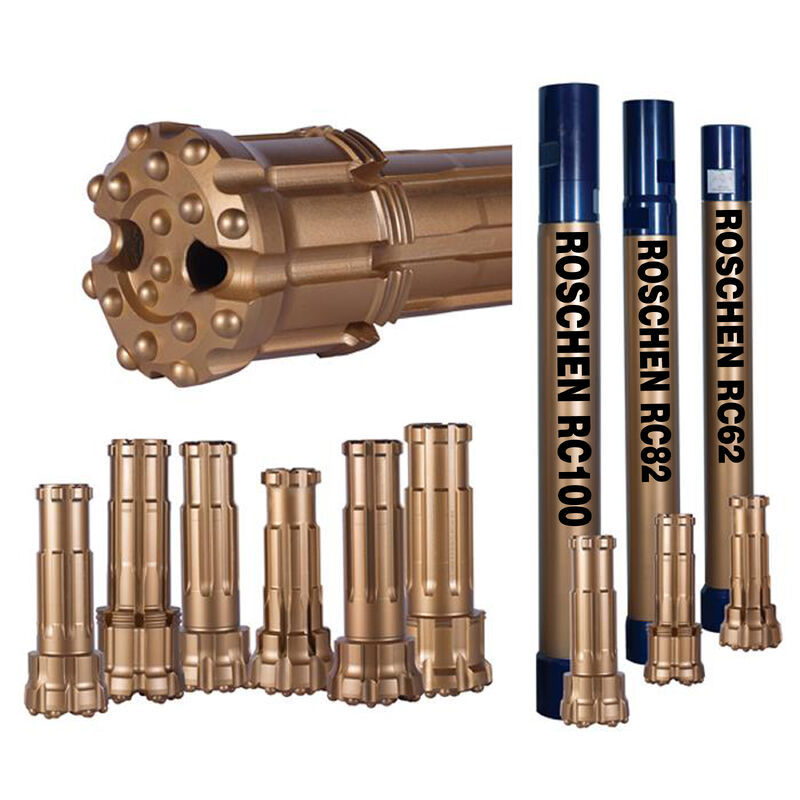

Product photos
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
