Triefus Triple Tube Core Barrel for dam sites / well mineral resources core drilling

1 sets
MOQ
N/A
মূল্য
Triefus Triple Tube Core Barrel for dam sites / well mineral resources core drilling
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Name: Core Barrel
Type: Conventional Core Barrel
Style: Wireline Core Barrel
Materials: European 4145 Steel Casing
Model: Q Series Core Barrel NQ, HQ, PQ Wireline Core Barrel
Metric: Bristish Metric Core Barrel
Standards: T 2-66, T 2-76, T 2-86, T 2-101, T 2-116; T6-76, T6-86, T6-101, T6-116
Core Barrels: Boart Longyear Core Barrel
Sweden Core Barrel: Core Barrel, Atlas Copco Core Barrel
Tools: Wireline Coring Tools
Q 3 Series: HQ 3, NQ 3, PQ 3 Core Barrels
Triple Core Barrel: BMLC, NMLC, HMLC Triple Tube Core Barrels
লক্ষণীয় করা:

wireline core barrel

,

drilling core barrel

মৌলিক তথ্য
উৎপত্তি স্থল: Germany
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO, API
মডেল নম্বার: AMLC,BMLC,NMLC,HMLC,3-5/8' x 2-1/2'C, 4-3/8' x 3 C, 5' x 4 C, 7’x 5 C, 10'x 8 C
প্রদান
প্যাকেজিং বিবরণ: Polywooden packing box
যোগানের ক্ষমতা: 500 sets
পণ্যের বর্ণনা



Triefus Triple Tube Core Barrel for dam sites / well mineral resources core drilling





Triefus Triple Tube Core Barrels


Triefus Triple Tube Core Barrels designed for dam sites , bridges , building , well mineral recources core drilling

Triefus Triple Tube Core Barrels is a precision instrument designed for dam sites, bridges, building, well mineral recources core drilling





The Triefus Triple Tube Core Barrel is a precision instrument designed to maximize core recovery in site investigation and exploratory drilling programs. With this cafe barrel it is possible to obtain as near to 100% volumetric core recovery in as undisturbed condition as it is possible to achieve with rotary core drilling equipment. It is not uncommon for drillers to report 98% + core recovery in the most difficult formations.





The results obtained from the use of Triefus Triple Tube Core Barrels can be a deciding factor in the investment of large sums of money in areas such as foundation design for dam sites, bridges and building, as well as the development of mineral resources. These results must be as accurate as it is possible to obtain. Triefus Triple Tube Core Barrels are capable of giving these results even under the most adverse circumstances provided they are used with the care that their function demands.



When used in conjunction with the Triefus Borehole Impression Device, it is possible to orient the core, differentiate drilling fractures from natural bedding planes and precisely locate the position of any core loss. An easily transportable permanent record of cored borings is also available for laboratory use.



In addition to the standard Triefus Triple Tube Core Barrel a retractor model is available in most sizes for coring very soft formations where the core may be washed away by any excess jetting action while circulating. Many parts are interchangeable between both types of barrels and the retractor barrel can be converted to a standard barrel on site.





Triple Tube Core Barrels (Standard)

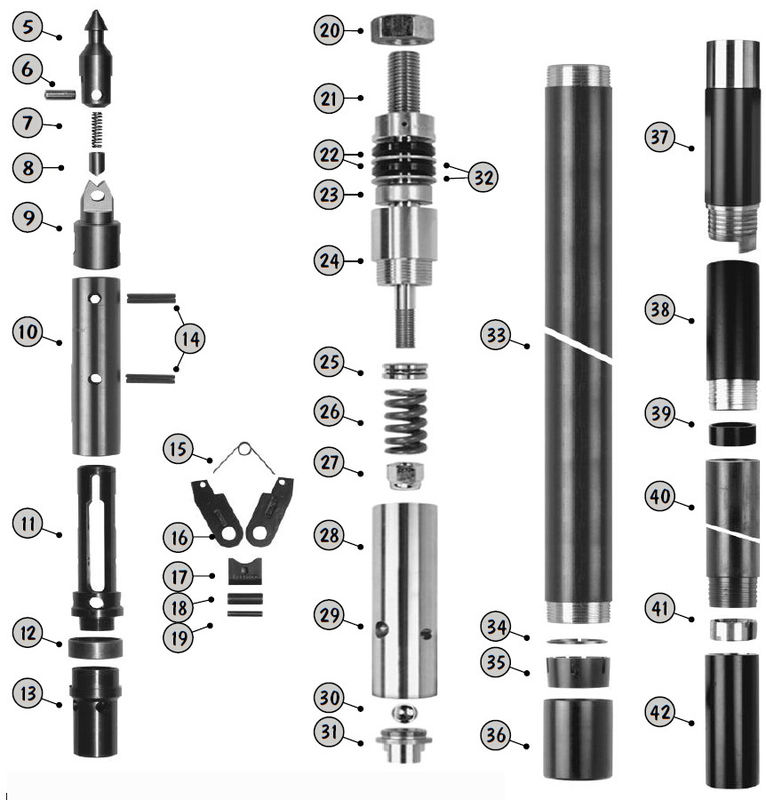

The Triefus Triple Tube Core Barrel, as described in figure 1, was developed nearly sixty years ago in conjunction with the snowy mountains hydro electric authority and the joint coal board of Australia for coring the badly weathered and decomposed granite in south eastern new south wales ‘from the grass roots down’.


SIZE

Set O.D. of Bit

Set Core Diameter

Set Reamer Diameter

AMLC

47.37mm

26.97mm

48.00mm

BMLC

59.18mm

35.20mm

59.94mm

NMLC

74.80mm

51.94mm

75.69mm

HMLC

98.42mm

63.50mm

99.21mm









3-5/8' x 2-1/2'C

91.31mm

63.50mm

92.07mm

4-3/8' x 3 C

110.61mm

76.20mm

111.12mm

5' x 4 C

138.89mm

101.60mm

139.70mm

7’x 5 C

196.04mm

146.05mm

196.85mm

10'x 8 C

259.10mm

202.70mm

260.35mm


The cutting sizes AMLC, BMLC, NMLC and HMLC are to international standards and are used with standard W series casing. Water Ends are threaded to accept W series drill rods. From 2C to 8C the barrels are supplied with rod connections specified by the client.



The letters ‘LC’ used in the reference nomenclature refer to ‘Large core’ to differentiate between the original double tube core barrels (NM etc.) in which the core diameter was much smaller than that obtainable with these barrels.



All Triefus Triple Core Barrles are normally supplied with steel split inner tubes; however plastic (non-split) inner tube is available in NMLC size and stainless and hard chromed split tubes can be supplied for most other sizes. The plastic inner tube is used in NMLC triple tube core barrels where it is desired to retain the core exactly as it is recovered from the hole. The core is not removed from the plastic inner tube which is sealed at each end and despatched undisturbed to the laboratory. Because the plastic is clear and only 1 mm thick, visual examination of the core is possible at the drill site.



The outer tubes of all Triefus Triple Tube Core Barrels are hard faced at each end. Staggered hard facing over the full length of the outer tube can be supplied if required.
