High Air Pressure Cop 32 Down The Hole Hammer and Button Bit for Water Well Drilling

1-4 sets
MOQ
Negotiate
মূল্য
High Air Pressure Cop 32 	Down The Hole Hammer and Button Bit for Water Well Drilling
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
মডেল নম্বার: Button Bits
Model NO: Cop 32 button bits
Material: American buttons
Machine Type: Drilling Tool
China: China High Air Pressure DTH Hammers
Type: Drill Bit
Usage: Rock Drilling
Processing: Forging
Subject: Button Taper Bits for Rock Drill
Button Bit: Cop 32 DTH Hammer and Button Bit
Item No: 64 and 32 bit difference
Model: America DTH Button Bits
Accessories: Numa DTH Button bits
Rock: Rock drill bits carbide
Supplier: Carbide button bits
Button Bits: DTH Hammers and Button Bits
Bits: Dth Hammer Bits
Hammer: Cop32 Hammer
Origin: China DTH Hammer and Button Bit
Series No.: Halco DTH Button bits
লক্ষণীয় করা:

dth drilling tools

,

down hole tools

মৌলিক তথ্য
উৎপত্তি স্থল: Germany,China
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO
প্রদান
প্যাকেজিং বিবরণ: Wooden box
যোগানের ক্ষমতা: 1200 sets
পণ্যের বর্ণনা

High Air Pressure Cop 32 DTH Hammer and Button Bit


High Air Pressure Cop 32 DTH Hammer and Button Bit for Water Well Drilling

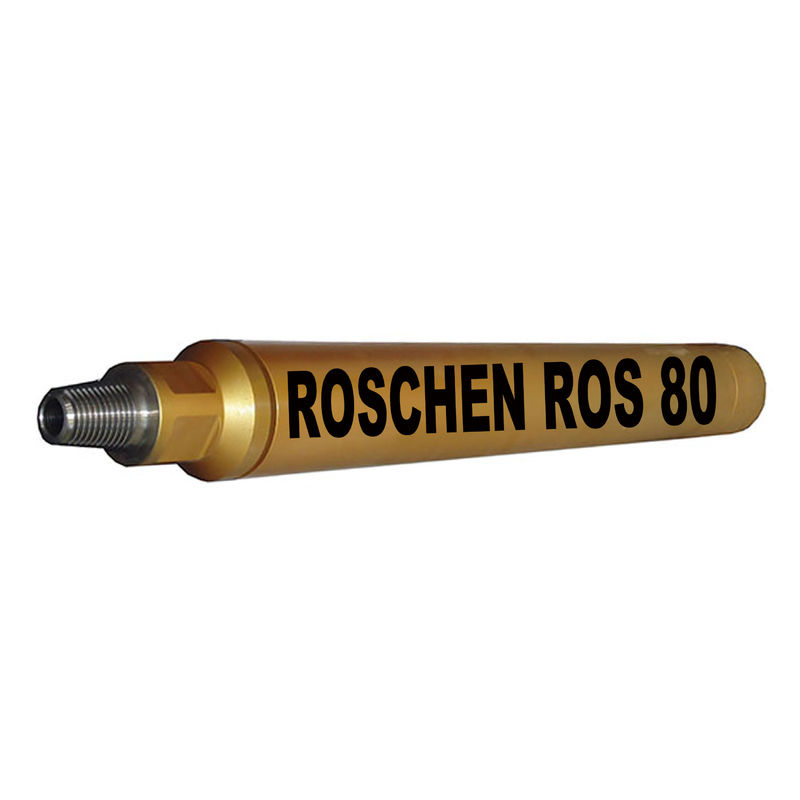

DOWN THE HOLE DRILLING HAMMERS



DTH hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.


Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.


Roschen offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method.


Made with high quality of raw material through special heat treatment, especially, tungsten carbide of tapered button bits are from Boart long year, widely applied in Hand Hold ( short-hole) drilling system for dimensional stone quarrying. At now, we are exporting the huge qty of Q7- 33- 7 22-80, Q9 -45 -12 22- 71 for Indian quarry and Norway, Finland quarry.

Diameter of bits from 30mm to 50mm with 4, 6, 7, 11, 12 degree, premium alloy tapered drill steel with Hexagonal. 22mm and Hexagonal. 25mm, The deliver capacity are very strong and can completely meet customer's requirements on delivery design, number of buttons is 4, 5, 6, 7, 8, 9, 7 buttons is very popular for hold held (short holes ) and blast drilling system.

Main Products:

1. 1-22 inch middle-low/high air pressure DTH hammers & bits
2. Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
3. Eccentric overburden drilling Equipment
4. Hole opener bit
5. Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
6. Extension Rod, M/F Rod, M/m Rod, Drift Rod,
7. Shank adapter, coupling sleeves and all kinds of adapters



Product Name: DTH drill bits
Description: DTH drill bits are used for blast hole drilling and water well drilling projects.
Working with DTH hammer, mainly applied in Mining,
Marble quarry or well drilling and other construction projects.
Material: High quality carbide + High quality carbon steel
MOQ: 5pcs
Compatibility Series: COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc




Specification: Diameter: (mm) Weight: (kg)
Low air pressure DTH bits CIR type 68 ~ 200 2.6 ~ 48
Middle air pressure BR & COP type 76 ~ 110 3.8 ~ 15
3 inch high Air pressure DTH bits 85 / 90 / 95 / 100 / 105 4.2 ~ 5.5
4 inch high Air pressure DTH bits 105 / 110 / 115 / 120 / 127 9 ~ 12
5 inch high Air pressure DTH bits 133 / 140 / 146 / 152 / 165 15 ~ 18.5
6 inch high Air pressure DTH bits 152 / 165 / 178 / 190 / 203 26 ~ 36
8 inch high Air pressure DTH bits 195 / 203 / 216 / 254 / 305 33 ~ 95



ROSCHEN DTH Bits Specifications
Hammer Size Bits diameter Shank ROSCHEN CODE
Metric Inch
1" 64mm-70mm 2 1/2"-2 3/4" BR1 ROS 11
2" 70mm-95mm 2 3/4"-3 3/4" MACH20/BR2 ROS 22
3" 90mm-102mm 3 1/2"-4" COP32/COP34/MACH303 ROS 32
M30/DHD3.5/BR3 ROS 34
4" 105mm-152mm 4 1/8"-6" COP44/DHD340/MACH44 ROS 42
SD4/M40/QL40 ROS 44
5" 133mm-165mm 5 1/4"-6 1/2" COP54/DHD350R/MACH50 ROS 52
SD5/M50/QL50/BR5 ROS 54
6" 152mm-254mm 4 1/8"-10" COP64/DHD360/SD6 ROS 62
M60/QL60/Bulroc BR6 ROS 64
8" 203mm-330mm 8"-13" COP84/DHD380/SD8 ROS 82
QL80/M80/M85 ROS 84
10" 254mm-380mm 10"-15" SD10 ROS 100
NUMA100
12" 305mm-508mm 12"-20" DHD1120/SD12 ROS 120
NUMA120/NUMA125
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!





ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!
