Atlas Copco Cluster drill , utility power pole drill Mineral exploration

1 set
MOQ
Negotiate
মূল্য
Atlas Copco Cluster drill , utility power pole drill Mineral exploration
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
মডেল নম্বার: Cop64 216mm dth bit
Name: Cluster Hammers and Bits
No.: Cluster hammer drill
Item: Jumbo Cluster Hammer
Model No: Atlas Copco Cluster Drill
Drills: Wireline Core Drilling
Series: Wireline Diamond Core Bits
Rig: Rotary Drill Rigs
Rocks: Drill For Hard Rock Conditions
Drilling: Exploration Core Drilling
Functions: Piling Purpose
Purpose: Cluster Hammer Adopts The Typical Bauer Square Drive
Use: Several DTH Hammers Work Together
Usage: Single Jumbo Cluster Hammer
Type: Drill Bit
Machine Type: Drilling Tool
Material: High Manganese Steel
Supplier: Cluster Hammer, Cluster Hammer Suppliers and manufacturer
Aplication: Quarry drilling, coal mining, DTH drilling, Foundation Drilling, Tunneling
Model: Impregnated Diamond Core Bits
Mining: Australia Mining
Exploration: Australia Exploration
লক্ষণীয় করা:

dth drilling tools

,

down hole tools

মৌলিক তথ্য
উৎপত্তি স্থল: GERMANY, CHINA
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO
প্রদান
প্যাকেজিং বিবরণ: Poly Wooden box
যোগানের ক্ষমতা: 10000 pcs
পণ্যের বর্ণনা





Atlas Copco Cluster drill , utility power pole drill Mineral exploration


Atlas Copco Cluster drill Utility power pole drills, Cluster drills for creation of multiple utility pole holes






Utility power pole drills, Cluster drills for creation of multiple utility pole holes




Utility power pole drills, Cluster drills



Utility power pole drill



• Creates electric pole sockets in hard rock much more efficiently than older auguring or blasting methods.
• Allows rapid creation of multiple utility pole holes.
• Industry segments: Construction and Geotechnical (Mineral exploration)



Cluster hammer drill:


• Combines multiple DTH hammers into a single canister.
• Custom engineered drills are manufactured to meet each customer’s unique hole size requirements.
• Capable of drilling 32 to 70 inch diameter holes.
• Short, light weight and compact.
• Features exclusive, patented technology for selfindexing and quick-release bits.
• Industry segment: Construction and Geotechnical (Mineral exploration)

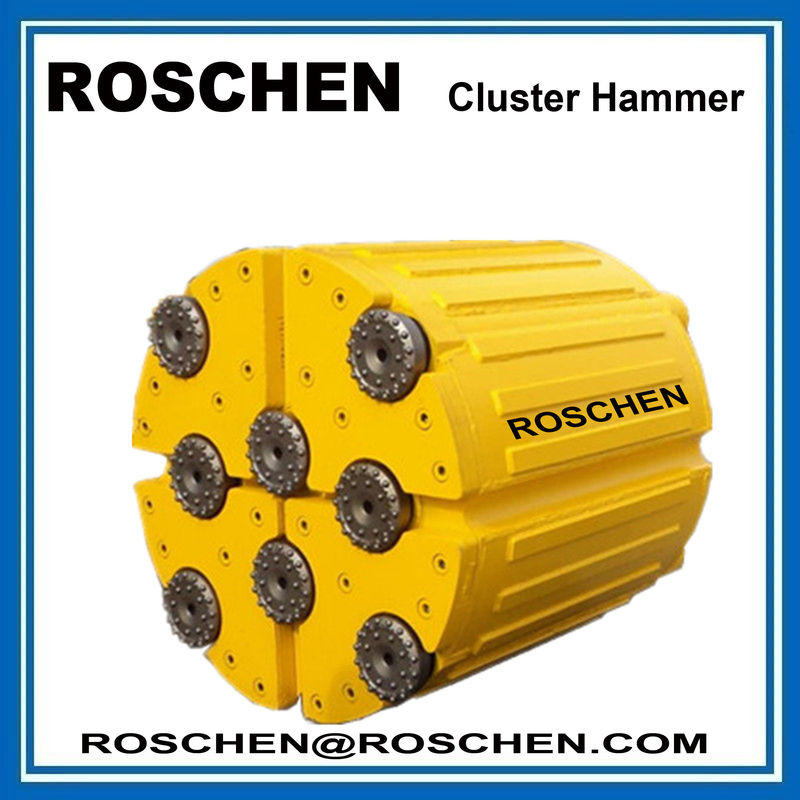

Atlas Copco Cluster drill , utility power pole drill Mineral exploration 0


Atlas Copco Cluster drill , utility power pole drill Mineral exploration 1





ROSCHEN RS Series Cluster Hammer
Model RS 660 Diameter (mm) 660
Height (mm) 1400 (without pilot bit) Total height (mm) 2500
Weight (Kg) 1100 Total weight (Kg) 1800
No. of Sub-hammers 4
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 36 m³/min 72 m³/min 104 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 800 Diameter (mm) 800
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 1380 Total weight (Kg) 2300
No. of Sub-hammers 5
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 45 m³/min 90 m³/min 130 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 1000 Diameter (mm) 1000
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 1900 Total weight (Kg) 3000
No. of Sub-hammers 7
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 63 m³/min 126 m³/min 182 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 1200 Diameter (mm) 1200
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 2450 Total weight (Kg) 3500
No. of Sub-hammers 8
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 72 m³/min 144 m³/min 208 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 1300 Diameter (mm) 1300
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 2640 Total weight (Kg) 3800
No. of Sub-hammers 8
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 72 m³/min 144 m³/min 208 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.

Model RS 1500 Diameter (mm) 1500
Height (mm) 1400 (without pilot bit) Total height (mm) 2600
Weight (Kg) 3390 Total weight (Kg) 4900
No. of Sub-hammers 10
Technical Data
Air pressure 1.0Mpa 1.8Mpa 2.4Mpa
Air consumption 90 m³/min 180 m³/min 260 m³/min
Remark: Above data for reference only, for more specific information, please contact with our market manager.





RS series Jumbo Cluster Hammer features



1. RS series cluster hammer adopts the typical Bauer square drive, can match with most of the rotary drilling rig prevailing on the market;

2. RS series cluster hammer use specially designed air intake, transmit air through a swivel, thus make the pipeline always rotates under a sealed environment.

3. The pipeline takes strict standard high air pressure hose, and lower cost by selecting most suitable model according to different air consumption.

4. High pressure joints are applied between pipelines, together with anti-trip hinge, which is easy to dissemble and safe to use.

5. RS series cluster hammer has the advantage of reasonable structure, simply while reliable, easy to maintenance, convenient to use on rotary drill rig, and low cost.

6. RS series cluster hammer can be customized according to specific requirements.



◆ RS series Jumbo Cluster Hammer features:



1. RS series cluster hammer adopts the typical Bauer square drive, can match with most of the rotary drilling rig prevailing on the market;

2. RS series cluster hammer use specially designed air intake, transmit air through a swivel, thus make the pipeline always rotates under a sealed environment.

3. The pipeline takes strict standard high air pressure hose, and lower cost by selecting most suitable model according to different air consumption.

4. High pressure joints are applied between pipelines, together with anti-trip hinge, which is easy to dissemble and safe to use.

5. RS series cluster hammer has the advantage of reasonable structure, simply while reliable, easy to maintenance, convenient to use on rotary drill rig, and low cost.

6. RS series cluster hammer can be customized according to specific requirements.


Atlas Copco Cluster drill , utility power pole drill Mineral exploration 2



Contact Roschen customer center or distributor for further information.
