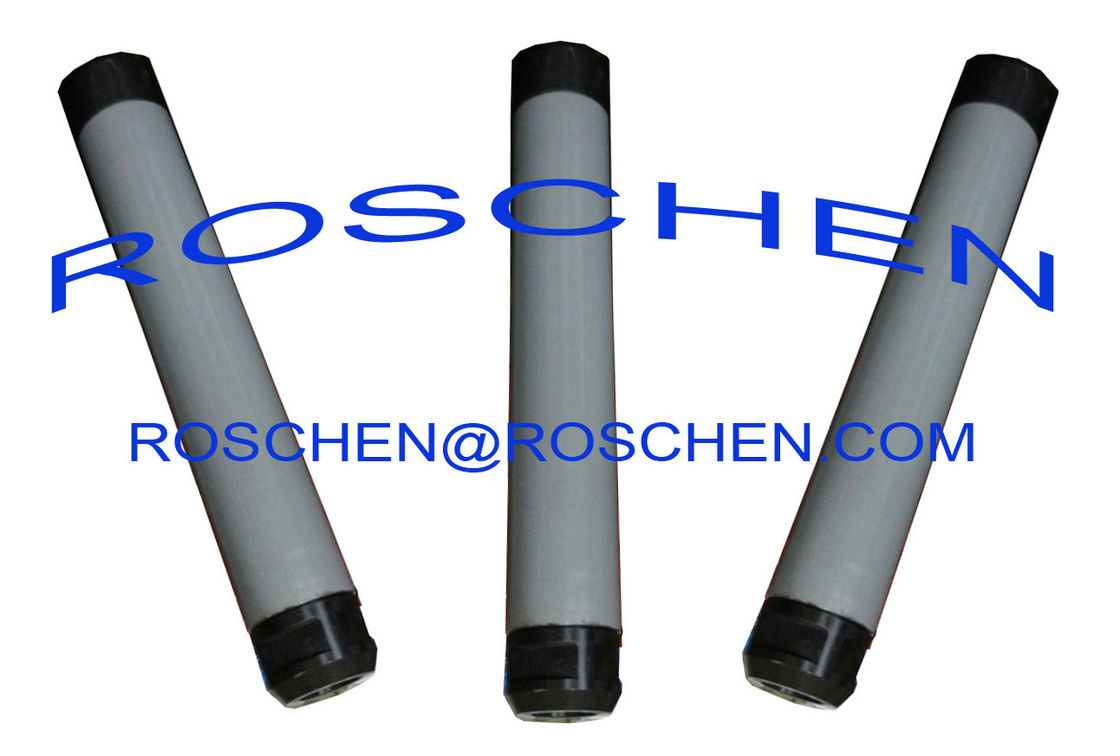

Effective Rock Drilling Tools Down The Hole Hammer D45 With Foor Vlave
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Model: Down The Hole Hammer
Mining Object: Mining, Ore Machinery, Stone Quarry
Usage: Use Together With DTH Button Bits
Model No: DHD360, QL60, SD80, COP64, COP84
Series No: SD, ROS, COP, BR, DHD, Mission
Material: High Carbon Steel
Applications: DTH Drilling. Coal Mining, Quarry
Drill Diameter: 65-305mm
Machine: Hydraulic Crawler Drill Rig
Drilling: Down The Hole Drilling, DTH Drilling
Tools: Top Hammer Drilling Tools
HS Code: 82071990
লক্ষণীয় করা:

dth drilling tools

,

down hole hammer

মৌলিক তথ্য
উৎপত্তি স্থল: GERMANY,CHINA
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO,CE
মডেল নম্বার: ROS64
প্রদান
প্যাকেজিং বিবরণ: Wooden Box
যোগানের ক্ষমতা: 3000
পণ্যের বর্ণনা





Effective Rock Drilling Tools Down The Hole Hammer D45 With Foor Vlave




High Air Pressure with Foor Vlave DTH Hammer D45

High Air Pressure with Foor Vlave DTH Hammer D45 for Down The Hole Hammer cost effective rock drilling method




DOWN THE HOLE DRILLING HAMMERS



DTH hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.


Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.




Roschen offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method.



Basic Info
Model NO D45-match bit shank Cop44, DHD360
Condition New
Mining Object Mining
Transport Package Poly Wood
Origin Germany,China
Usage Coal, Ore, Water Well, Pneumatic
Power Type Pneumatic
Trademark ROSCHEN
Specification ISO,CE
HS Code 8412310090











Description:

High air pressure DTH Hammer without footvalve, whichs has been one of the most advanced DTH Hammers in the world is our own design.




ADVANTAGES:

1. Out of the trouble of foot valve fracture and expansion and contraction.

2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.

3. Simple structure, reliable parts, long life, easy and cheap maintenance.

4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.




DTH hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Metzke, Remet thread is available!
