Crawler Multifunctional Borehole Drilling Rig For Top Hammer Drilling Tools

1 set
MOQ
Negotiate
মূল্য
Crawler Multifunctional Borehole Drilling Rig For Top Hammer Drilling Tools
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Model: Crawler Multifunctional Drilling Rig
Use: Top Hammer Drilling
Tools: Top Hammer Drilling Tools
Usage: Down hole Button Bits
Name: hydraulic submersible drilling rig
Type: full hydraulic crawler multifunctional drilling rigs
Drills: Percussion drilling
Hammers: DTH Hammer
লক্ষণীয় করা:

geothermal drilling rigs

,

borehole drilling machine

মৌলিক তথ্য
উৎপত্তি স্থল: Germany
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO
মডেল নম্বার: RS-CM--165, RS-CM-311
প্রদান
প্যাকেজিং বিবরণ: Bundle
যোগানের ক্ষমতা: 1000 sets
পণ্যের বর্ণনা

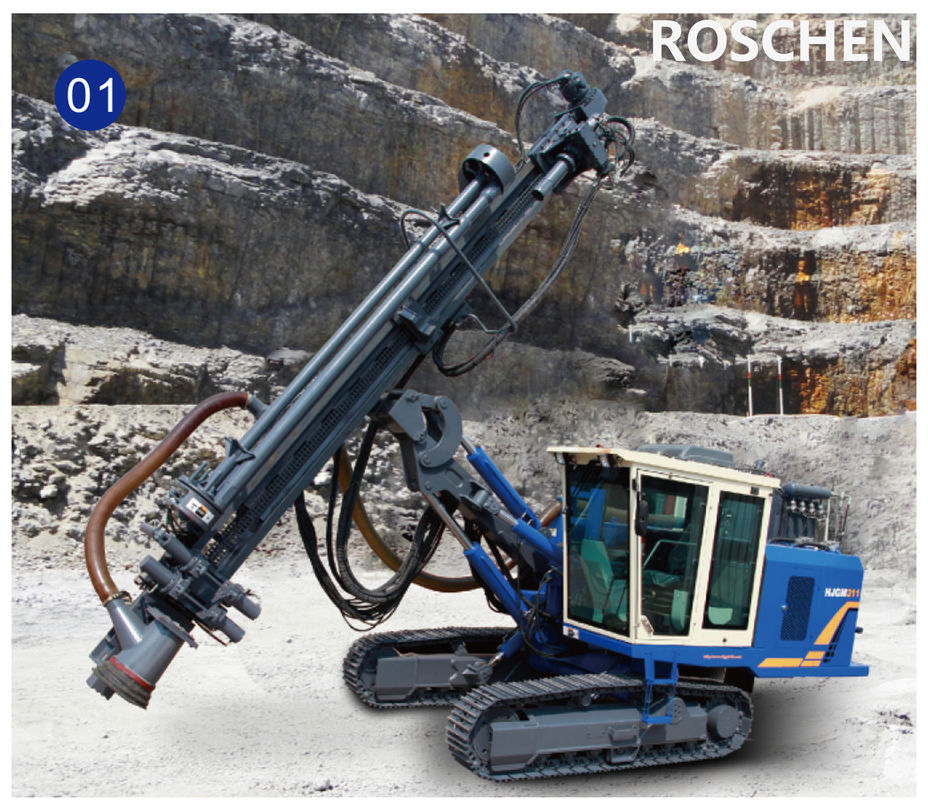

Crawler Multifunctional Drilling Rig for Top Hammer Drilling Tools



RSCM Series Crawler Multifunctional Drilling Rig is designed and developed for lowest drilling cost, which is a hydraulic submersible drilling rig that can achieve operational cost minimization but highest performance. The rig is widely used in open-pit mines for the middle and large size hole drilling. The rig is equipped with heating and air conditioning in the cab, dry dust removal system and hydraulic automatic unloading drill function. With advanced performance, high efficiency, low consumption, high reliability, operation and easy maintenance. The rig is the leading open hole drilling equipment.


The RSCM full hydraulic crawler multifunctional drilling rigs are configured with rotation-percussion rotary head or large torque rotation type rotary head as alternative,and equipped with down-the-hole hammer, which is designed for various hole forming operation. It is suitable for different soil condition, for example gravel layer, hard rock, aquifer, clay, sand flow etc. This rig is mainly used for rotation percussion drilling and normal rotation drilling in the project of bolt supporting, slope supporting, grouting stabilization, precipitation hole and underground micro piles, etc.


Advantages:

1. Reliable sliding rack mechanism adjusts the connection between boom and working face.
2. Totally new structural mechanical arm structure, strong and long life. Many joint frame and hydraulic cylinder, enlarge the drilling direction and working scope.
3. Auto block prevention mechanism can lift the drill stem automatically when the stem got stuck.
4. The cab of rig, which is equipped with heating and air conditioning, it is designed under the rule of ergonomic style and can provide good view for operators. Thus, the operation environment to the workers is greatly improved.
5. High efficient dust collection device helps to maintain clean working environment.
6. Auto dis-assembly mechanism for impacter and drilling stem. Clamped two hydraulic cylinders to assure efficient guide drilling during opening the hole and penetration, and automatic, reliable dis-assembly, thus it lightens the intensity of the labors and increase the working efficiency.

7. The use of high reliable crawler, imported travel motor and walking two speed control set maximize the efficiency and adaptability of the rig face.

8.All rig's manipulation, position adjustment, drilling position selecting are all centrally controlled by the pilot operating joystick, all the lights, warning lights are mounted on the same panel. Rig operator can recognize condition at a glance.

Technical Parameters:

Crawler Multifunctional Borehole Drilling Rig For Top Hammer Drilling Tools 0
