Mineral Exploration Impregnated Diamond Ultramatrix Core Bits for Series UMX 07 for Soft Formation drilling

1-5 PCS
MOQ
Negotiate
মূল্য
Mineral Exploration Impregnated Diamond Ultramatrix Core Bits for Series UMX 07 for Soft Formation drilling
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Model: Impregnated Diamond Core Bits
Size: NQ HQ PQ Ultramatrix Diamond Core Bits
Materials: Diamonds, micropowder
Usage: Geological drilling, exploration core drilling
Processing: Forging, Casting
Formation: Soft, Medium, hard and Ultra hard formation
Use: Mining and geology drilling
Series: Wireline Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Applications: Copper Mining Drilling
লক্ষণীয় করা:

Diamond Core Drilling Bits

,

Diamond Core Drill Bits For Rock

মৌলিক তথ্য
উৎপত্তি স্থল: CHINA
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO
মডেল নম্বার: HQ NQ PQ
প্রদান
প্যাকেজিং বিবরণ: Carton box
যোগানের ক্ষমতা: 100 PCS
পণ্যের বর্ণনা

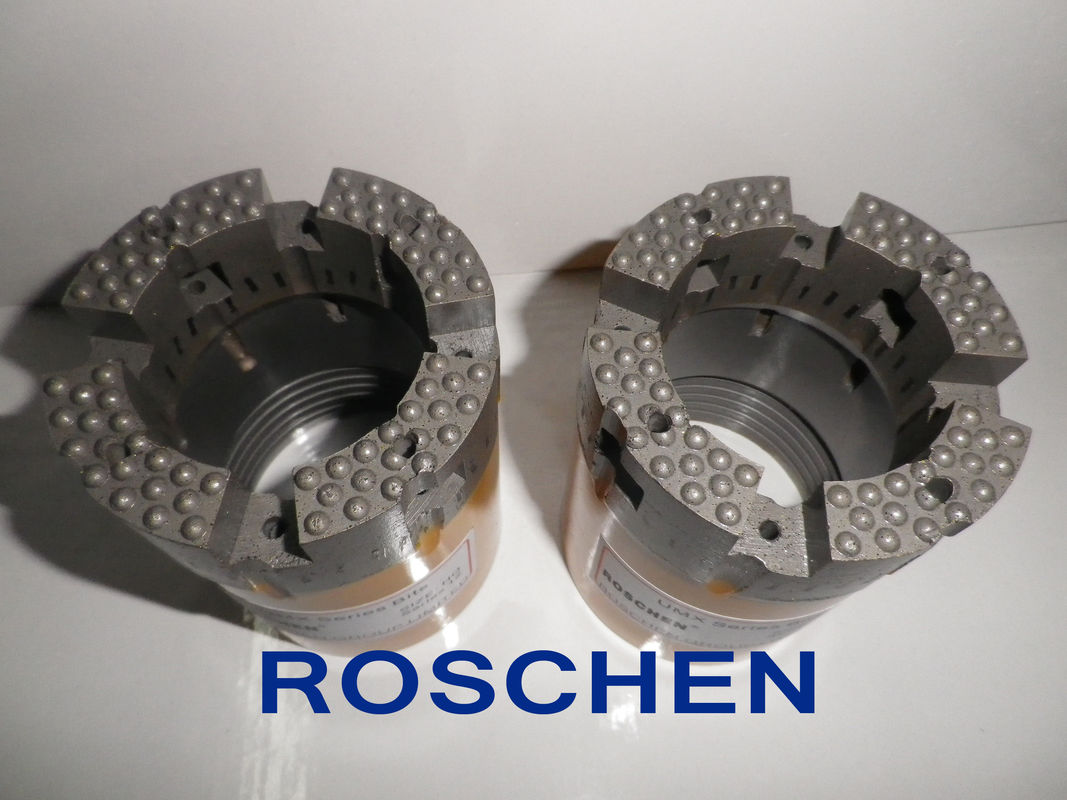

Mineral Exploration Impregnated Diamond Core Bit Ultramatrix Core Bits for Series UMX 07 for Soft Formation drilling




Features of UMX diamond core drill bits:

1. High wear resistance and impact-resistant toughness
2. Longer drilling life
3. High drilling efficiency
4. Fast penetration rate
5. Labor intensity can be reduced



Dimensions of Core Bits:



"Q" series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
A-Gauge Core Bits: AQ, AQ-RSG, AWG (AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG (BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG (NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG (HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T Series: T36, T46, T56, T66, T76, T86, T101
TT Series: TT46, TT56, TT66, TT76, TT86, TT101
T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TB Series Metric Core Bits: TB36, TB46, TB56, TB66, TB76, TB86, TB101
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
All other standard: CDDA, DCDMA, Crealius, and ISO sizes.




Advantage:


1. Certifacation Iso 9001:2008
2. With very small high quality synthetic diamonds mixed.
3. Impregnated core bits are more economical to use than other bits.
4. It can drill a broad range of geological formations from the softest to the hardest rock.


Ultramatrix core drill bits widely used in all kinds of drillings for prospecting, water and electricity building and construction industry of road, railway, bridge and building taking out core to examine stake.


Description:

UMX diamond bits have revolutionized mineral exploration. UMX bits drill faster, last longer, and perform in a wider range of drilling conditions and formations. The extended range and versatility of the UMX diamond bits means less tripping out rods and more core in the box.

The UMX diamond bits feature Roschen’s patented Ultramatrix.
Ultramatrix technology enables the use of large synthetic diamonds with an innovative formula, increasing penetration through various ground formations while providing longer bit life.

SSUMX is the original Ultramatrix bit. We developed an impregnated bit; with large synthetic diamonds, that exceeds the performance and reliability of traditional surface-set diamond bits. Many drillers around the world have reported up to a 200% increase in life over their traditional surface set bits, and profess that the SSUMX is now their only choice for surface-set drilling.

10UMX is free cutting. Our latest addition to the UMX family of bits is a high performance diamond bit with the freest cutting matrix made. It will quickly penetrate the very hardest rock formations.



Notice:
To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type / formation and down hole conditions.


Size:
Ultramtrix core bits are available in all standard drilling sizes. Also, non-standard sized bits can be produced according to requirements from clients.

Crown Height:
Ultramatrix core bits offers crown impreg depths of 9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Matrix:
ROSCHEN impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.

Threads:
standard Q threads as well as thread types required by clients are available.
