Atlas Copco Drifter Bits T35 Tools System Enable 54 or 57mm holes Using T38 Stiffer Rods

1 pcs
MOQ
Negotiate
মূল্য
Atlas Copco Drifter Bits T35 Tools System Enable 54 or 57mm holes Using T38 Stiffer Rods
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Model: GT 60 Retract Button Bits
Drill: Blast Hole Drilling
Tools: Top Hammer Drilling Tools
Use: Bench Drilling
Drilling: Drifting and Tunneling Drilling
Machine: Hydraulic Crawler Drill Rig
Usage: Down The Hole Drilling
লক্ষণীয় করা:

dth drilling tools

,

concrete core drill bit

মৌলিক তথ্য
উৎপত্তি স্থল: Germany
পরিচিতিমুলক নাম: ROSCHEN
সাক্ষ্যদান: ISO
মডেল নম্বার: T38
প্রদান
প্যাকেজিং বিবরণ: Poly wooden box
যোগানের ক্ষমতা: 1000pcs
পণ্যের বর্ণনা

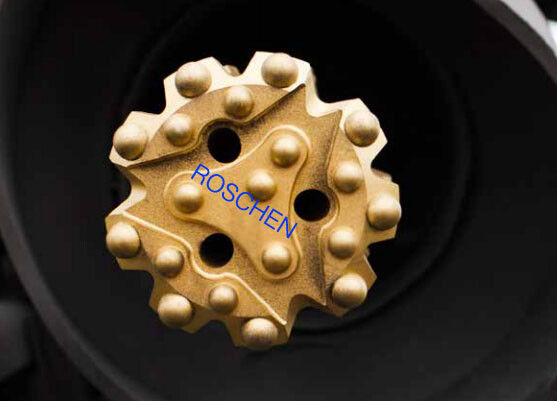

Atlas Copco Drifter Bits


Altas Copco Drifter Bits T35 Tools System Enable 54 or 57mm holes Using T38 Stiffer Rods

Atlas Copco bits for drifting and tunneling are available in four basic designs

The right solutions for increased productivity



A Roschen T35 tool system enables 54 or 57 mm holes to be drilled using the same stiffer rod dimension as for t38.



Roschen GT60 enables drilling of holes down to 92 mm. By using a GT60 tool system when drilling the typical t51 hole size (102 mm), hole straightness can be greatly improved–thanks to the much stiffer and stable rod package.



A drill string with Halco Mf-rods offers stiffer connections than a string with separate coupling sleeves due to the 50 % reduction in thread play


Benefits with Halco Tools In Bench Drilling:

1. Reduced consumption of explosives, which accounts for 40 – 50 % of the total drilling and blasting cost.
2. Longer service life of drill steel components reducing the drilling tool cost.
3. Improved safety–better blasting control.
4. Less downtime–improved productivity.
5. Less hole deviation which gives more well balanced fragmentation and thereby higher productivity in crushers.
6. Using Halco rock tools gives a lowered total operating cost.


Features:


Type 52
Designed for maximum bit life in hard and abrasive rock


Type 53
All-round design with a good trade off between speed and bit life length for hard to medium hard rock


Type 54
All-round design with high penetration rate for hard to medium hard rock


Type 55
Designed for maximum penetration rate in softer and less abrasive rock formations




Our GT60 bench and production rock drilling tools , thread button bits are designed to comply with all kinds of rock formations and drilling site conditions, with longer life, higher penetration rates etc..



Specifications:

Material: Alloy steel bar 45CrNiMoV and tungsten carbide tips YK05
Body type: Normal body or retrac body
Thread type: R22, R25, R28, R32, R38, T38, T45, T51, ST58, ST68, GT60
Diameter: 32mm-127mm
Button bit shape: spherical and ballistic
Face shape: Flat shape and drop-center shape


Technique parameter:

Main threaded button bits specifications:

R22-32mm, R22-36mm, R22-38mm, R22-41mm;
R25-33mm, R25-35mm, R25-37mm, R25-38mm, R25-41mm, R25-43mm, R25-45mm;
R28-37mm, R28-38mm, R28-41mm, R28-43mm, R28-45mm, R28-48mm;
R32-41mm, R32-43mm, R32-45mm, R32-48mm, R32-51mm, R32-54mm, R32-57mm, R32-64mm, R32-76mm;
T38-64mm, T38-70mm, T38-76mm, T38-89mm, T38-102mm, T38-127mm;
T45-76mm , T45-89mm, T45-102mm;
T51-89mm, T51-102mm, T51-115mm, T51-127mm;
GT60-92mm, GT60-96mm, GT60-102mm, GT60-115mm, GT60-118mm, GT60-127mm, GT60-140mm, GT60-152mm etc.
